DESIGN

Material and restraint design

GALVANISED STEEL:

  • Independently tested by Manufacturer to meet relevant SABS requirements.
  • Z275 Galvanised coating for maximum durability.
  • Galvanise ductility and adherence bend tested to ensure long term anti corrosion performance.
  • Infinitely recyclable.

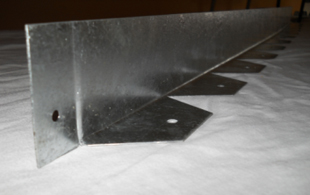

L-SHAPED DESIGN:

  • Intermediate struts not required so differing finishes can be installed either side of the units.
  • Utilises the downward pressure of the load and weight of the pavers to tie the edging to the pavers.
  • Allows installation tight up to obstructions.
  • Bedding sand will not migrate from under the edging.

BASE PLATE TRIANGULAR CUT OUTS:

  • Set out at 100mm pitch.

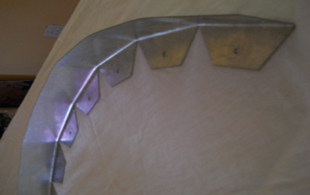

  • Allows flexibility to the vertical face to easily install curves 0.5m and greater.
  • Can accommodate 60° bends at internal cut out nodes.

PRE-DRILLED SPIKE HOLES:

  • Set out at 100mm pitch.
  • Accommodates standard 150mm wire or 120mm spiral nails which are easily available.
  • Driveway loading the unit is spiked every 100mm and this is increased to 200mm for pedestrian only areas.

JOGGLE END CONNECTOR:

  • Joggle ensures flat restraint laying face.
  • Adjacent units easily riveted together.

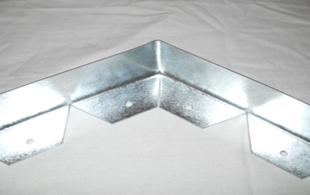

  • Enables 90° bend internal/external unit installation.
